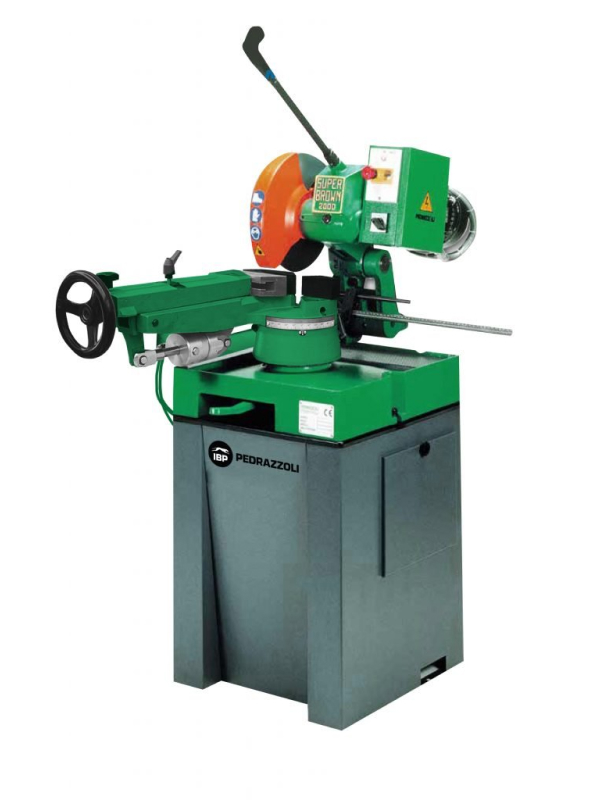

Super Brown 2000 MRP Manual pulldown with pneumatic vice
MEETS THE MOST DIVERSE CUTTING REQUIREMENTS COMPLETE WITH NUMEROUS ADJUSTMENTS
2 speeds three phase (230 V – 50 Hz or 400 V – 50 Hz)
Description
MACHINE COMPLETE WITH:
- Manual quick clamp (for MRM versions).
- Pneumatic quick-release clamp (for MRP versions).
- Safety switch for blade drive on lever hand grip.
- Complete protection guard with rapid blade change system.
- Emergency push button with key on control panel.
- Two-speed switch.
- Tilting head on adjustable self-lubricating bushings.
- Mechanism for the rotation of head block for angled cuts up to 45° left and right with blocking lever.
- Lateral head movement unit for 45° cuts left and longitudinal cuts.
- Support crank which allows to cut with the same ease and performances big pieces (crank forward) and small pieces (crank back).
- Refrigerating liquid tank with immersion pump to reduce overall dimensions.
- Bar stop with millimetre ruler.
- Circular blade ø 275.
- Instruction book for use and maintenance.
- Set keys for maintenance.
ACCESSORIES UPON REQUEST:
- Micromist lubrication
- Loading and unloading roller tables
DIMENSIONS > 550 x 1200 x 1800 mm
WORKTOP HEIGHT > 950 mm
WEIGHT > 230/240 kg
Cutting capacity
> Round tubes
45° left: 80 mm
0: 80 mm
45° right: 80 mm
> Square profiles
45° left: 65 mm
0: 80 mm
45° right: 70 mm
> Rectangular profiles
45° left: 70 x 65 mm
0: 100 x 70 mm
45° right: 75 x 70 mm
