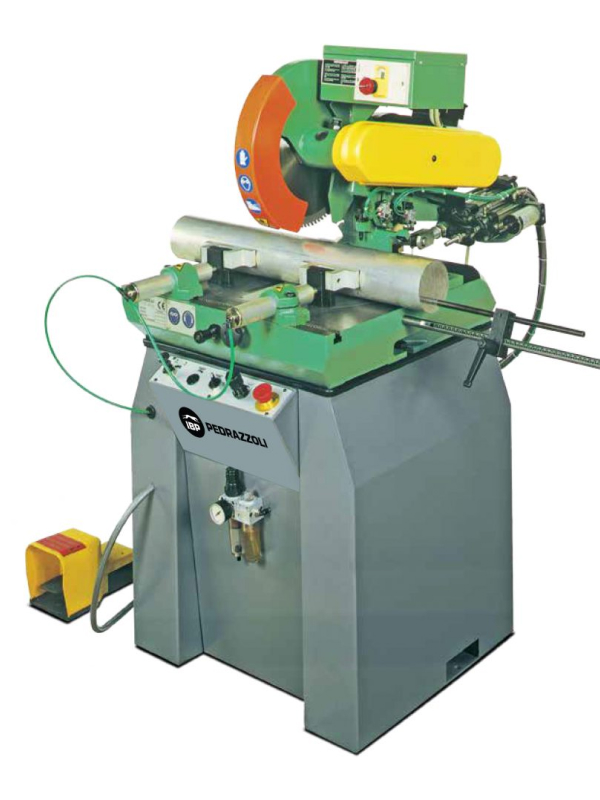

PERRIS 350 SA SEMIAUTOMATIC CIRCULAR SAW FOR LIGHT ALLOYS
Description
MACHINE COMPLETE WITH:
- Mechanism for the rotation of head block for angled cuts up to 45° left , 45° right and 45° off the vertical.
- Two pneumatic vices adjustable both lengthwise and laterally.
- Pneumatic cylinder for head movement, with brake for speed adjustment.
- Two speeds of blade rotation obtainable by inverting the pulleys.
- Perfectly balanced head, tilting upon shielded ball bearings.
- Drive pedal for semiautomatic cycle.
- Emergency push button with key and lockable switch on control panel.
- Nebulizer.
- Complete protection guard with rapid blade change system.
- Bar stop with millemetre ruler placeable on both sides of the machine.
- Instruction book for use and maintenance.
- Set of keys for maintenance.
- Please note: blade not supplied with machine.
ACCESSORIES UPON REQUEST:
- Copper cutting kit
- Widia blade
- Loading and unloading roller tables
DIMENSIONS > 600 x 1100 x 1300 mm
WORKTOP HEIGHT > 790 mm
WEIGHT > 215 kg
Cutting capacity
> Round tubes
45° sx: 95 mm
0: 100 mm
45° dx: 95 mm
60°: 55 mm
> Square tubes
45° sx: 95 mm
0: 95 mm
45° dx: 90 mm
60°: 50 mm
> Rectangular tubes
45° sx: 130 x 55 mm
0: 155 x 90 mm
45° dx: 130 x 55 mm
60°: 150 x 40 mm
