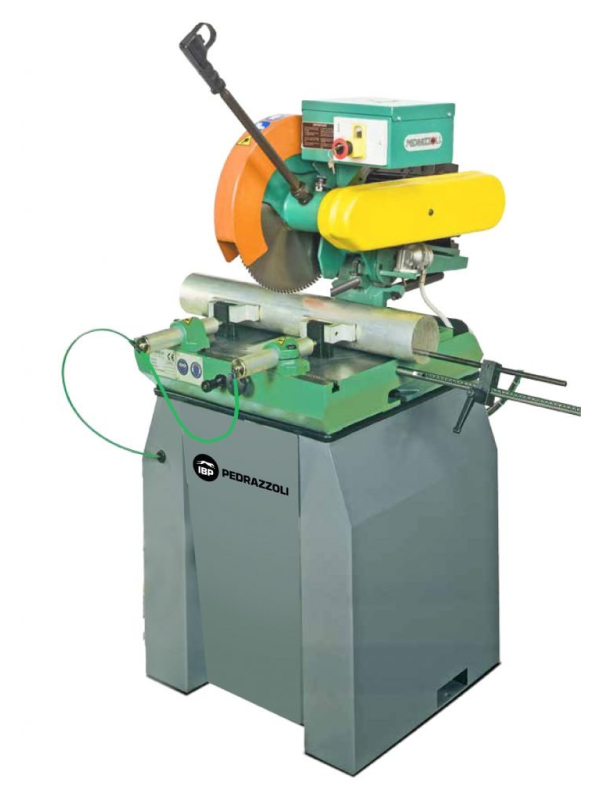

Perris 350 MRP Manual pulldown with pneumatic vice
MANUAL CIRCULAR SAW FOR LIGHT ALLOYS
1 speed three phase (230 V – 50 Hz or 400 V – 50 Hz)
Description
MACHINE COMPLETE WITH:
- Mechanism for the rotation of head block for angled cuts up to 45° left, 45° right and 45° off the vertical.
- Two manually operated vices adjustable both lengthwise and laterally.
- Two speeds of blade rotation obtainable by inverting the pulleys.
- Perfectly balanced head, tilting upon shielded ball bearings.
- Emergency push button with key on control panel.
- Safety switch for blade drive on lever hand grip.
- Blade lubrication-cooling system with membrane pump.
- Complete protection guard with rapid blade change system.
- Bar stop with millimetrer ruler placeable on both sides of machine.
- Instruction book for use and maintenance.
- Set of wrenches for maintenance.
- Please note: blade not supplied with machine.
ACCESSORIES UPON REQUEST:
- Copper cutting kit
- Widia blade
- Loading and unloading roller tables
DIMENSIONS > 750 x 1050 x 1750 mm
WORKTOP HEIGHT > 790 mm
WEIGHT > 210/215 kg
Cutting capacity
> Round tubes
45° sx: 95 mm
0: 120 mm
45° dx: 95 mm
60°: 50 mm
> Square tubes
45° sx: 95 mm
0: 110 mm
45° dx: 90 mm
60°: 50 mm
> Rectangular tubes
45° sx: 130 x 55 mm
0: 155 x 90 mm
45° dx: 130 x 55 mm
60°: 150 x 40 mm
