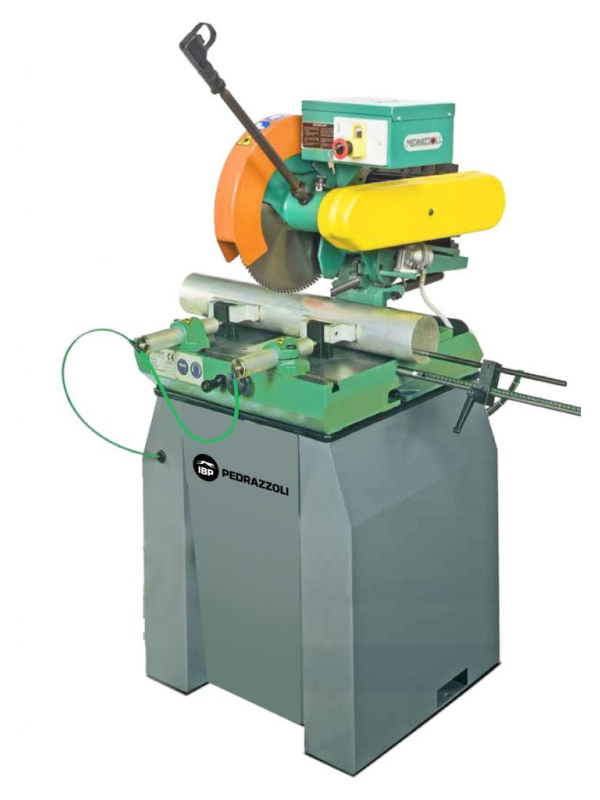

Perris 350 MRM Manual pulldown, manual vice

Description


MACHINE COMPLETE WITH:

• Mechanism for the rotation of head block for angled cuts up to 45° left, 45° right and 45° off the vertical.
• Two manually operated vices adjustable both lengthwise and laterally.
• Two speeds of blade rotation obtainable by inverting the pulleys.
• Perfectly balanced head, tilting upon shielded ball bearings.
• Emergency push button with key on control panel.
• Safety switch for blade drive on lever hand grip.
• Blade lubrication-cooling system with membrane pump.
• Complete protection guard with rapid blade change system.
• Bar stop with millimetrer ruler placeable on both sides of machine.
• Instruction book for use and maintenance.
• Set of wrenches for maintenance.
• Please note: blade not supplied with machine.


ACCESSORIES UPON REQUEST:

• Copper cutting kit
• Widia blade
• Loading and unloading roller tables


DIMENSIONS > 750 x 1050 x 1750 mm

WORKTOP HEIGHT > 790 mm

WEIGHT > 210/215 kg

Cutting capacity


> Round tubes
45° sx: 95 mm

0: 120 mm

45° dx: 95 mm

60°: 50 mm

> Square tubes
45° sx: 95 mm

0: 110 mm

45° dx: 90 mm

60°: 50 mm

> Rectangular tubes
45° sx: 130 x 55 mm

0: 155 x 90 mm

45° dx: 130 x 55 mm

60°: 150 x 40 mm
