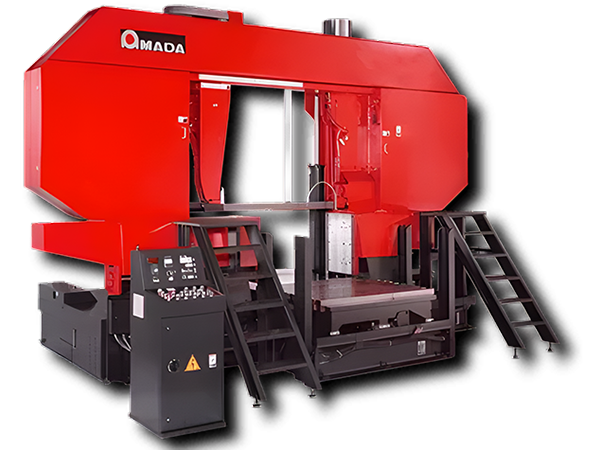

Amada H2116 semi-automatic bandsaw
This 2100mm capacity single column and guide industrial bandsaw is very heavy and rigid in its construction.
Description
Bandsaw H 2116 II
This 2100mm capacity single column and guide industrial bandsaw is very heavy and rigid in its construction.
Amada have designed a series of heavy duty large capacity industrial bandsaws to cope with adverse environments and conditions of use. The accessibility of the machines allow large diameters and shapes to be loaded/unloaded with ease.
Features
Cutting Control
The cutting rate has been simplified by dividing materials in to 9 groups when a particular material is selected the machine will automatically set the downfeed cutting rate and recommend the correct blade speed. Thus achieving maximum blade life.
Blade deviation monitor
Cutting depth control
Light beam marking
Motor and Drive Transmission
A powerful 15kw motor coupled with a no torque loss helical bevel gear drive
Bandsaw Blade Width
A 80mm wide blade 16500mm long gives a high beam strength enabling faster down feeds achieving excellent cutting rates for all types of materials including Inconel, Hastelloy and Monel.
Maximum Cutting Capacity
Round bar : 1600mm
Rectangular bar : 2100mm (w) 1600mm (h)
For a full specification, demonstration or quotation call now on 01274870311
The difference is in matching the blade design with the machine design
