Amada SMARTCUT thin kerf bandsaw blade

Amada SMARTCUT thin kerf bandsaw blade

amada logo

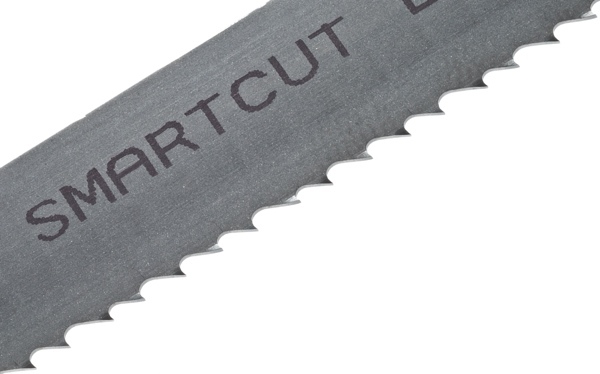

Amada SMARTCUT thin kerf saw blade is a bi-metal blade for metal cutting band saw machines, especially for thin cut applications.

  • Please enter your full name
  • Please enter your phone number including STD code
  • Please enter your email address for corespondence
  • Please enter your company name
  • Please enter your postcode
  • Please indicate your preferred method for us to reply by.
  • Please indicate the areas of interest.
  • Please ask your questions here.
  • Please could you indicate above what method you used to find Accurate.
  • By making this enquiry, you consent to receiving an emailed reply. Please tick the boxes below to indicate that you wish to receive further emails regarding this or similar products. At no point is your information shared with any other company or marketing service.
Category:

Description

Amada SMARTCUT thin kerf saw blade is a bi-metal blade for metal cutting band saw machines, especially for thin cut applications.

When sawing narrow parts from expensive metal bars or blocks, using SMARTCUT BAND gives you twofold cost-saving benefits: reducing material waste, disposal cost and increasing parts yield per bar, resulting in additional profit. The power of accumulating little savings cannot be underestimated. “A penny saved is a penny earned.”

SMARTCUT thin

Ideal blade for PCSAW330 for fast cutting, high material yield sawn parts.


Features

Special think blade for maximum material yield

SMARTCUT thin features

ADVANTAGES
More than 10% thinner kerf than regular SGLB or Magnum Hi-Lo bandsaw blade

BENEFITS
Reduced chip volume

SMARTCUT thin benefits


Specification

SCB-SG (SmartCutBand SGLB)
Edge Material M42 High-Speed Steel
Hardness of Tooth Tip 950 Hv
Wear Resistance (1 – 5) *** (3 Stars)
Chipping Resistance (1-5) ** (2 Stars)



The hardness of the Tooth Tip represent Amada’s average value. It is adjusted to some extent according to the types and size of the products.

SCB-MA (SmartCutBand Magnum Hi-Lo)
Edge Material Amada M71 High-Speed Steel
Hardness of Tooth Tip 1000 Hv
Wear Resistance (1 – 5) **** (4 Stars)
Chipping Resistance (1-5) * (1 Stars)



The hardness of the Tooth Tip represent Amada’s average value. It is adjusted to some extent according to the types and size of the products.


Availability

Width Thickness Pitch
1.1/1.5 2/3 4/4 4/6
1 1/2″ 0.032 V V V
Width Thickness Pitch
1.1/1.5 2/3 4/4 4/6
1 1/2″ 0.032 V V



V: Variable Positive Rake

Specifications may change without notice at the sole discretion of Amada’s Engineering Department.
